Release time:2024-10-07
Urinal installation instructions
The installation of a floor urinal
1, floor urinal must be made in the pipe to determine the location of drainage pipe to wall tile installation and accurate size.
2. When the dimensions are correct, tighten the sealing ring around the outlet pipe to prevent the urinal from leaking.
3. Apply sealant to the interface of urinal rubber ring and urinal seal ring, and place urinal steadily on the installation place. After the urinal is installed horizontally through the level ruler, draw a line on the bottom, the upper part and the left and right sides of urinal.
4. Through the calculation, confirm the installation position of the rear of the urinal, and punch and fix firmly with the special fitting.
5. After installing the rear fittings, apply sealant to the gap between the urinal and the wall and the ground.
6. Test the water after installing the inlet pipe.

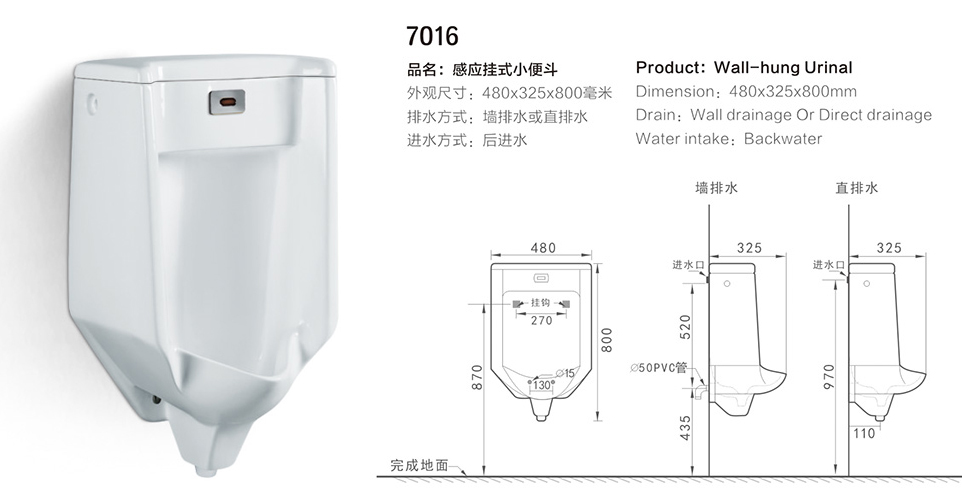

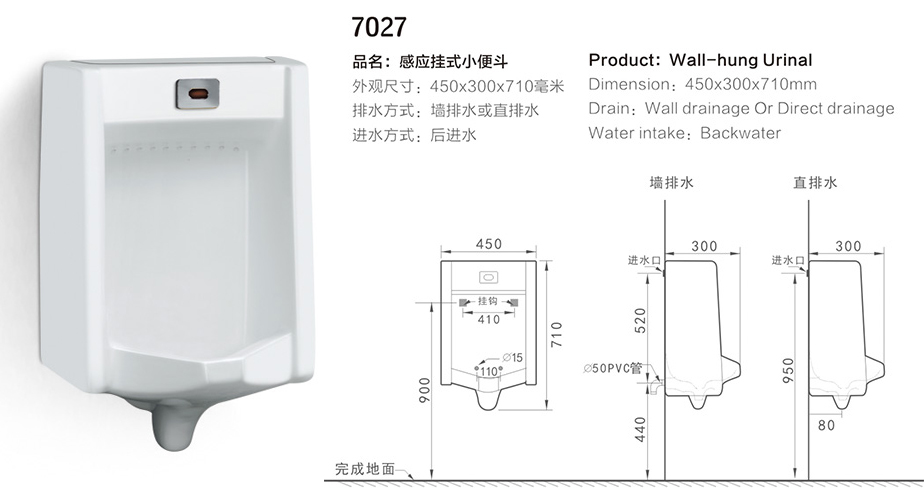

Installation of wall-mounted urinals
1. Wall-mounted urinals are divided into floor drain and wall drain. The installation of floor drain only needs to pay attention to the height of the outlet, it is best to make wall tiles according to the size of the urinal to reserve the water inlet and outlet.
2. Wall-mounted urinal accessories: screws, decorative caps, copper horse head, aprons, urinal hook, etc.
